TWIN SCREW EXTRUDER
Upgrade Model “KZW Series"
Highspec Model “MFU Series”
Basegrade Model “ZRO Series”
- POINT01
For standard and customized specificationTechnovel twin screw extruder has been designed and manufactured, meeting the needs of our customer with the know how we have accumulated over 30 years.
- POINT02

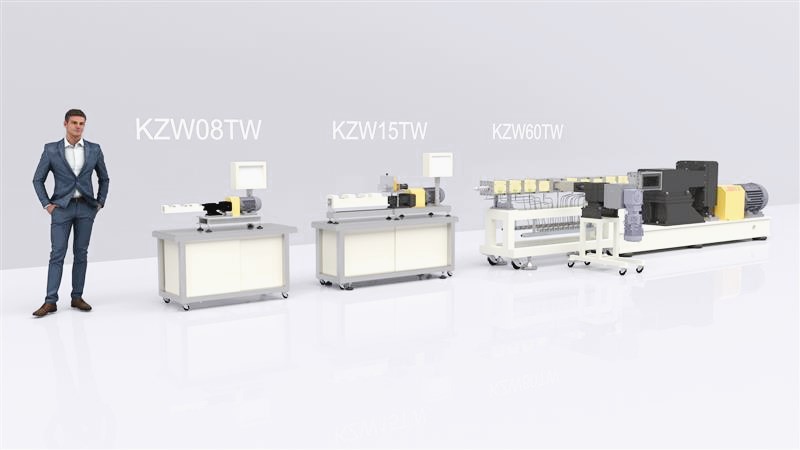

From production scale to R&D ScaleWe offer a wide range of models unique to dedicated extruder manufacturers. We also have numerous demonstration units available.
- POINT03
Technovel original gearboxPlease feel free to inquire about the torque specifications of each grade of the twin screw extruder
- POINT04
Screw configuration optimizationThe design of the screw elements assembly provides for a wide selection of screw formation with technovel expertise.
Other Features
- 1L/D=12-150
- 2Screw RPM 100-10,000rpm
- 3Max barrel pressure resistance 35MPa
- 4Segment screw elements
- 5Excellent self-cleaning
- 6Reliable scale up and flexibility in machine modification
Technical Data
| Screw diameter | 06, 08, 10, 12, 15, 20, 25, 32, 40, 48, 60, 71, 92, 108, 113, 134 |
|---|---|
| Number of screw | TW : Twin screw type |
| L / D | 15～150 |
| Grade | Base grade ”ZRO” series Upgrade “KZW” series High grade “MFU” series |
| Screw type | NH : Standard depth of screw grove SH : Deeper screw depth OT : Other specification |
| Screw rpm | 100～10,000rpm |
System & Strengths
Advancing twin screw kneading with Technovel extruders
One machine for kneading, reaction and forming.
Flexible system configuration and deep engineering capability across a broad range of applications.
Technovel has formed strategic partnerships with specialist manufacturers abroad, covering the extrusion process from upstream to downstream, including simulation. With a support structure tuned to the Japanese market, we deliver advanced extrusion technology from a single source.
A feeder specialist founded in Rhode Island, USA. It develops disk and screw feeders for very small to small dosing volumes.
A fiber spinning specialist in Leeds, UK. It offers a broad range of laboratory scale solutions, from melt, wet and gel spinning to bicomponent spinning.
A pelletizing equipment specialist based in Bologna, Italy. Premium pelletizers of original design, developed by founder Alberto Baracco.
A family business in Tradate, Italy. Founded in 1978, it delivers innovative pelletizing technology, from laboratory units to production machines.
A simulation specialist from France. Its 1D analysis software “Ludovic” cuts prototyping and trial and error, and shortens development time considerably.
Applications
Application fields of twin screw extruders
From plastics, compounding, chemical, medical and food through to recycling,
we cover a wide field of applications with accumulated know how and experience.
R&D Machines & Technical Info
Technical support from a specialist manufacturer
for R&D
Our laboratory range is equally extensive. From a very compact machine with a 6 mm screw diameter to the popular 15 mm class, we support research and development with full specifications equivalent to production machines.
For every customer challenge, we propose the optimal solution, beginning with screw formation.
from a Specialist Manufacturer
To support the technical development of customers worldwide, we publish technical information on extrusion, ranging from the fundamentals to specialist knowledge.
- 01What Is a Twin Screw Extruder
- 02Co-rotating and Counter-rotating Twin Screw Extruders
- 03Difference Between Single Screw and Twin Screw Extruders
- 04Dispersive and Distributive Mixing in Twin Screw Extruders
Technovel products
-
TWIN SCREW EXTRUDERTechnovel Standard TSE
KZW / MFU / ZRO SERIES -
LAB TWIN SCREW EXTRUDERTechnovel Popular Product
KZW / MFU / ZRO SERIES -
QUAD/OCTA SCREW EXTRUDERTechnovel Original Product
WDR-OT /WDR-QD Series -
SINGLE SCREW EXTRUDERTechnovel Standard Model
SZW Series -
LOOP TWIN SCREW EXTRUDERLoop Type Model
ULTnano Series -
COUNTER-ROTATING TWIN SCREW EXTRUDERCounter Rotating Model
TCR Series
